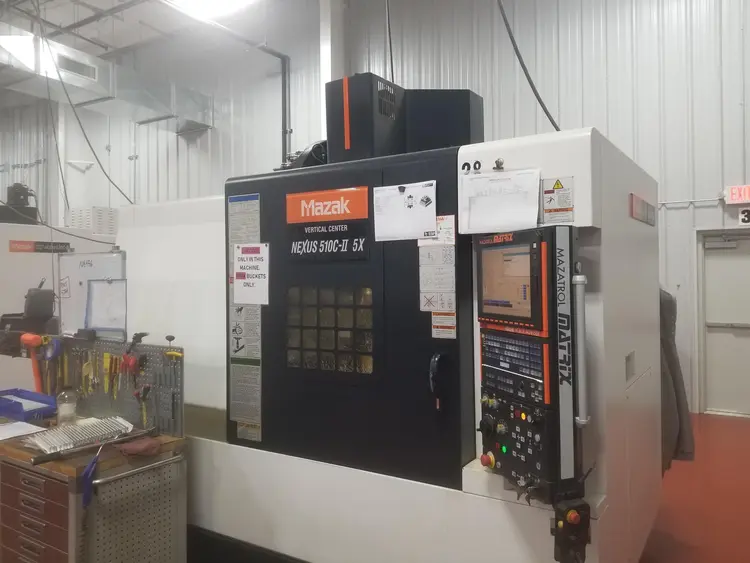

2013 MAZAK NEXUS VCN-510C-II-5AX
Vertical Machining Centers (5-Axis or More)
| X | 41" |
| Y | 20" |
| Z | 20" |
| # Axis | 5 |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 30 |
| Taper | CAT-40 |
X-Axis Travel
41.34"
Y-Axis Travel
20.08"
Z-Axis Travel
20.08"
Spindle Speed
12,000 RPM
Spindle Taper
CAT 40
Spindle Motor
25 HP
Tool Magazine Capacity
30 ATC
Control
Mazatrol Matrix
Cutting Feed Rate
1,417 IPM
Rapid Traverse X, Y, Z
1,417 IPM
Spindle Nose To Table
5.9" ~ 25.98"
Chip Removal
Chip Conveyor
Additional Axis
5th Axis Trunnion Table
Coolant
213 PSI Through-Spindle Coolant
Table Size
51.8" x 21.65"
Weight on Table
2,630 Lbs
Tool Diameter
4.92"
Tool Length
13.78"
Tool Weight
17.6 Lbs
Machine Weight
15,600 Lbs
5-Axis Simultaneous Machining
5-Axis Spline Interpolation
8 MB Program Size
G00 Slope Constant
RDT821 5-Axis Trunnion Table
Synchronized Tapping
