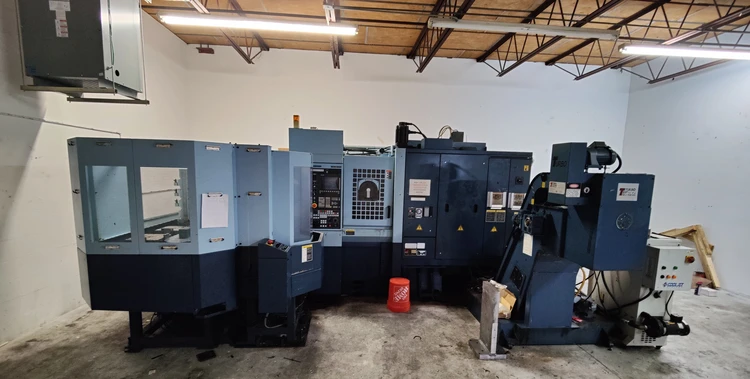

2007 MATSUURA H.Plus-300 PC11
Horizontal Machining Centers
| X | 19.69" |
| Y | 22.05" |
| Z | 19.69" |
| Power | 20 hp |
| RPM | 20,000 RPM |
| # ATC | 180 |
| Taper | BT40 |
| Pallet-W | 11.81" |
| Pallet-L | 11.81" |
| # Axis | 4 |
| Control | CNC (MATSUURA G-Tech 840Di) |
| Dimensions | 216" x 144" x 102" |
| Weight | 18,300 lbs. |
Max Pallet Capacity: 551 lbs.
Rapid Traverse Rate(X/Y/Z): 2362 IPM
Max Tool Diameter: 3.4"
Max Tool Length: 11.81"
Max Tool Weight: 17 lbs.
Tool Change Time(Chip to Chip): 2.4 seconds
Pallet Change Time(Pallet to Pallet): 6.6 seconds
MATSUURA G-Tech 840Di CNC Control
20,000 RPM Spindle
11 Pallet Changer System
180 Tool Magazine
Renishaw Probe System and Touch Setter
Full Fourth Axis
Coolant Through Spindle (1000 PSI)
Spindle Chiller Unit
Turbo Chip Conveyor
6 Tombstones
Approximately (60) BT 40 Toolholders
